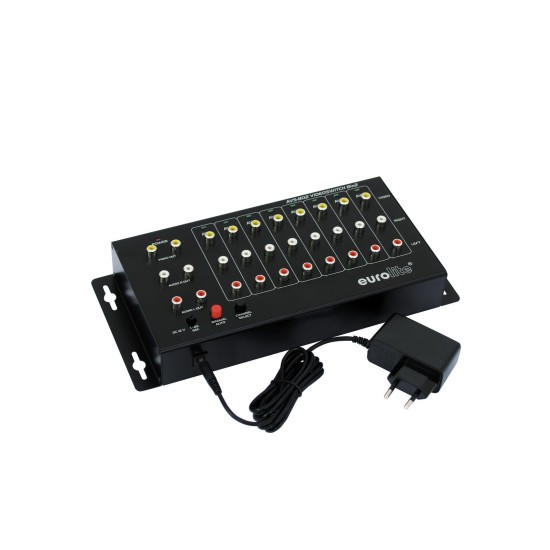

EUROLITE AVS-802, Video switch 8in2

Oggetto nuovo venduto con fattura e garanzia italiana.

8-way AV switch

For switching eight AV sources (audio, composite video and s-video television signals) to up to two television monitors
Typical applications are security or information systems in shopping centres, schools, hotels, railway stations, airports etc.
8 inputs (RCA), manually or automatically switchable
Automatic switching time adjustable from 1 to 25 seconds
2 outputs (RCA)
Simultaneous recording to one or two video or DVD recorders
A stereo system can be connected via the second output
12 V power supply via power unit included in the delivery




Power supply:100-230 V AC, 50/60 Hz ~,
 via supplied power unit
Power consumption:6 W
Video
8x inputs:1 Vpp/ 75 ohms, composite RCA
2x outputs:1 Vpp/ 75 ohms, composite RCA
Gain:2 V, 1 V (terminated)/ 75 ohms
Return loss:>18 dB
Video bandwidth:>100 MHz
Audio
8x inputs:22 kohms, stereo RCA
2x output:1 kohms, stereo RCA
Gain:nominal 0 dB
THD:0.05 %
Channel separation:>75 dB
Frequency response:20 Hz - 100 kHz
S/N ratio: 100 dB
Dimensions:282 x 128 x 50 mm
Weight:1 kg
