Crossover Attivo OMNITRONIC XO-300

3-way stereo operation
24 dB octave slope

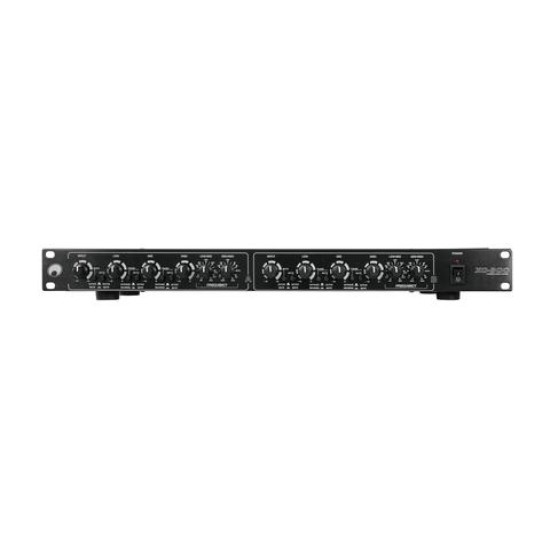

Individual output level controls for each frequency range
Adjustable crossover frequencies low/mid and mid/high
Individual muting for input signal and each frequency range
CD horn EQ for smoother treble selectable
Switchable mid and high phase
Input level adjustable

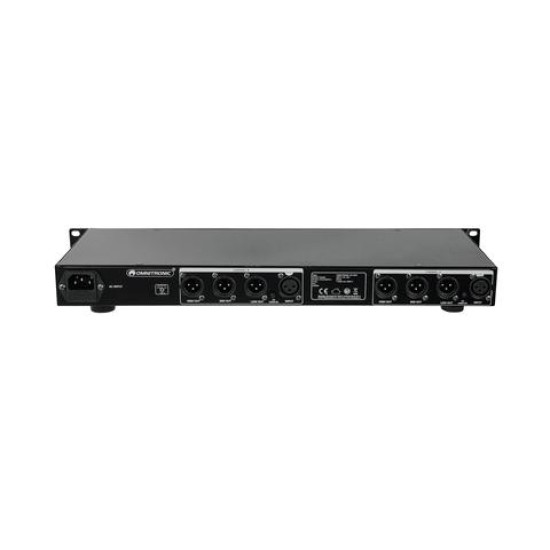

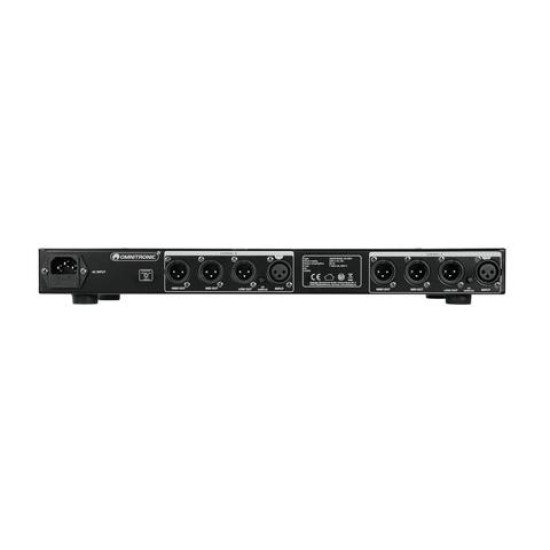

All connections via XLR jacks
Rack installation, 1 U

Power supply: 230 V AC, 50 Hz
Power consumption: 20 W
Slope: 24 dB / octave
Operation modes: 3-way stereo
Input impedance: 10/20 kohms (unb./bal.)
Output impedance: 300/150 kohms (unb./bal.)
In/out connectors: XLR
S/N ratio: >100 dB
THD: 0.05%
Crosstalk: >80 dB, -3 dB
Crossover frequency Low/Mid: 80 Hz - 920 kHz
Crossover frequency mid/hihg: 800 Hz - 9.2 kHz
Input gain: - ~ to + 6 dB
Low cut: 40 Hz, -3 dB
Phase adjustment: 0-180°
Dimensions (WxDxH): 483 x 187 x 48 mm
Weight: 3.3 kg
Shipping weight: 2.84 kg
