OMNITRONIC DR-1000 MK2 Ricevitore Wireless

A variety of options with multi-frequency wireless systems
    With the new 1000 series OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192) up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers hand-held microphones bodypacks with singer headset or moderator headset or lavalier microphone.


Multifrequency wireless receiver True Diversity

• Multifrequency wireless receiver with UHF pilot tone technology (PLL)
• High-quality true diversity reception

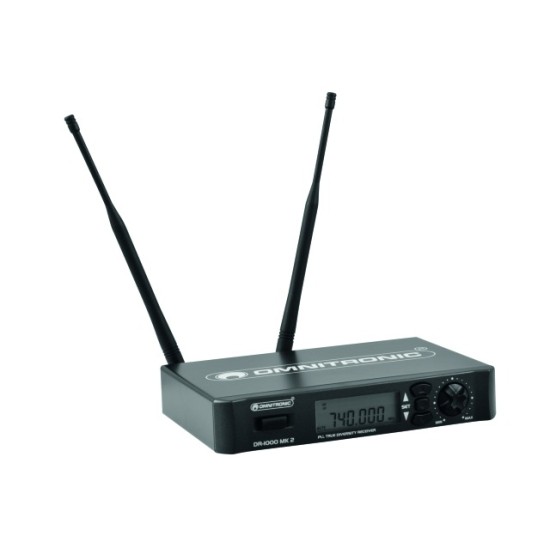

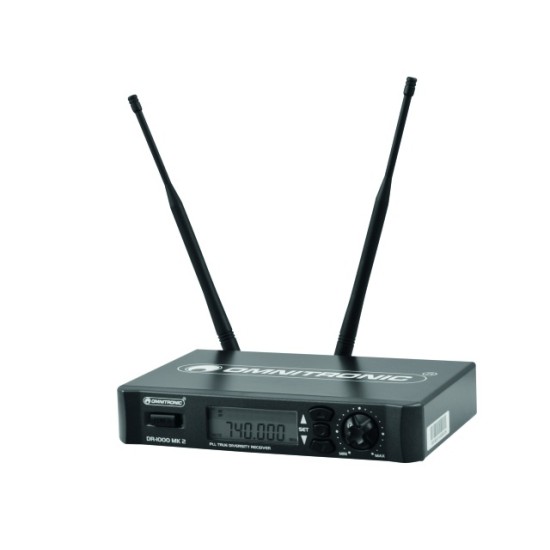

• Two removable antennas (BNC connection)
• Operation in the low-interference UHF band (740-764 MHz)
• 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
• Operation range with line of sight 100 meters
• System expandable to up to 16 receivers with 16 microphones
• LCD for battery status of the transmitter antenna A/B RF reception level AF audio level and frequency
• Automatic frequency scan
• Output level control
• Lock function avoids undesired changes by users also accidental shutdown
• Mute mode when signal is absent or too weak

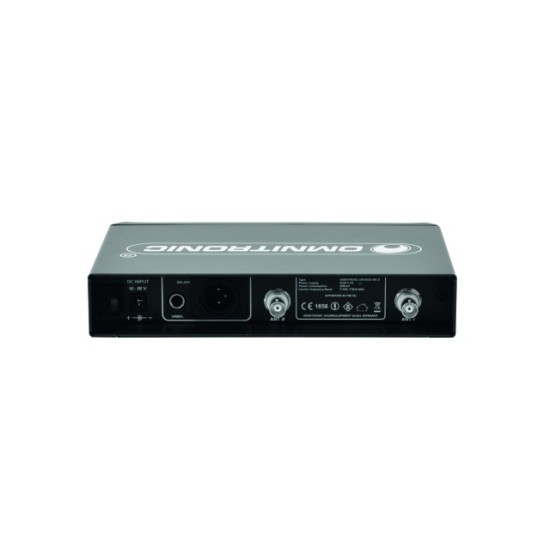

• 6.3 mm and XLR output

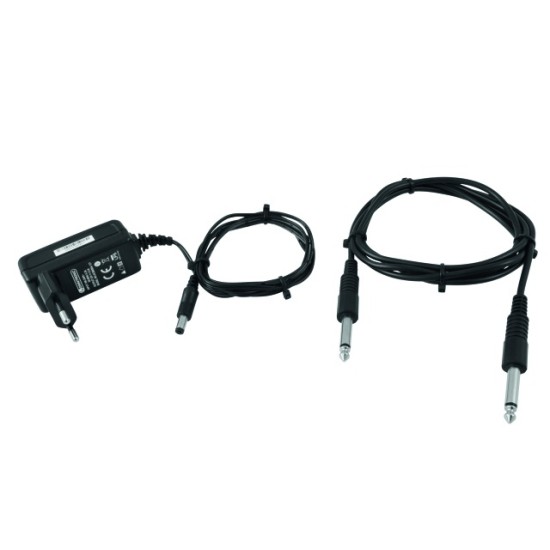

• Operation via supplied power unit
• Rugged metal housing
• Optional mounting frame for rack installation available
• Optional antenna boosters and antenna distributor for easy setup of several receivers
• Optional hand-held microphone pocket transmitter lavalier microphone and headset available

System:	True diversity one channel
Carrier frequency:	UHF 740-764 MHz
Switching bandwidth:	24 MHz
No. of frequencies:	192
Frequency steps:	125 kHz
Frequency stability:	± 0.005 %
T.H.D.:	<0.6 % at 1 kHz
S/N ratio:	>105 dB
Dynamic range:	>96 dB
Modulation method:	FM
Coverage:	100 m (with line-of-sight)
AF response:	40-18000 Hz
Audio output:	3-pin XLR balanced
	6.3 mm jack unbalanced
Power supply:	100-240 V AC 50/60 Hz ~
	via supplied power unit
Power consumption:	6 W
Dimensions:	213 x 150 x 40 mm
Weight:	600 g
